- Type:GPS Tracker
- Function:Bluetooth-Enabled
- Warranty:1 Years
- Place of Origin:China
- Brand Name:donworry
- Model Number:TK205, TK205
- Use:Automotive
- Product name:gps for children
- Weight:0.38KG
- functions:Web Platform/APP
- Network:GSM/GPRS 850/900/1800/1900MHz
- GPS accuracy:5m
- Keyword:gps tracker
- web:www.gps110.org
- Color:black
- Band:850/900/1800/1900Mhz
Content | Specs. |
Dim. | 85mm x27mm x16mm |
Weight | 26g |
Network | GSM/GPRS |
Band | 850/900/1800/1900Mhz |
GPS sensitivity | -159dBm |
GPS accuracy | 5m |
Work voltage | 9V-90v |
Time To First Fix | Cold status 45-85s Warm status 35s Hot status 1s |
Storage Temp. | -40°C to +85°C |
Operation Temp. | -20°C to +55°C |
Humidity | 5%--95% non-condensing |
Support platform and App tracking

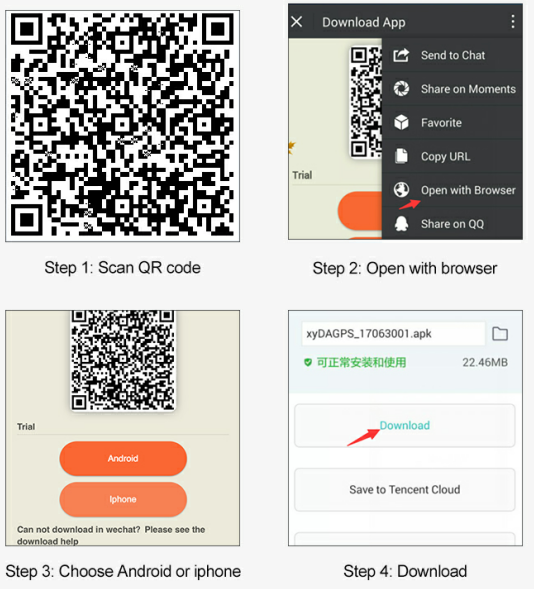

APP tracking: Scan QR code---open with browser--- choose Android or IPHONE---download---installation app
Platfrom: www.gps110.org
Use tracker imei login,default password123456

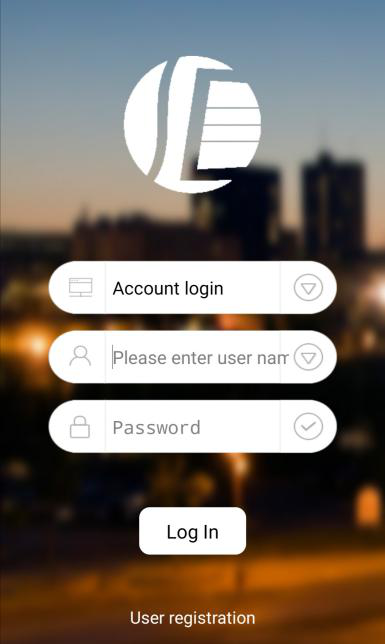

PC login APP login
NOTE: If device online in platform, no need set apn commands
-If you insert the correct SIM card and open GPRS, device in outdoor, still not online. Please set the APN commands
we have two methods to find out APN content:ask sim card company or put sim card into cell phone to find out APN
SMS1: APN123456+space+APN name ( APN name pls ask the sim card company ,for example tell you the APN name is ABC,so send APN123456 ABC) -If have the APN user name and password, need plus APN user name and password behind the APN name)
Eg: APN123456+space+APN name+space+APN user name+space+ APN password
Shipping Details
We will send the good out in 1-3 working days once received your payment with real time tracking Number.
DHL/Fedex/UPS/TNT/ARA/EMS/By air/By sea and so on are optional, we can send goods by shipping ways you want.
For order over 500pcs or customized order, lead time will be 7-15 work days after the receipt of payment. Please contact our sales to make sure the current inventory.

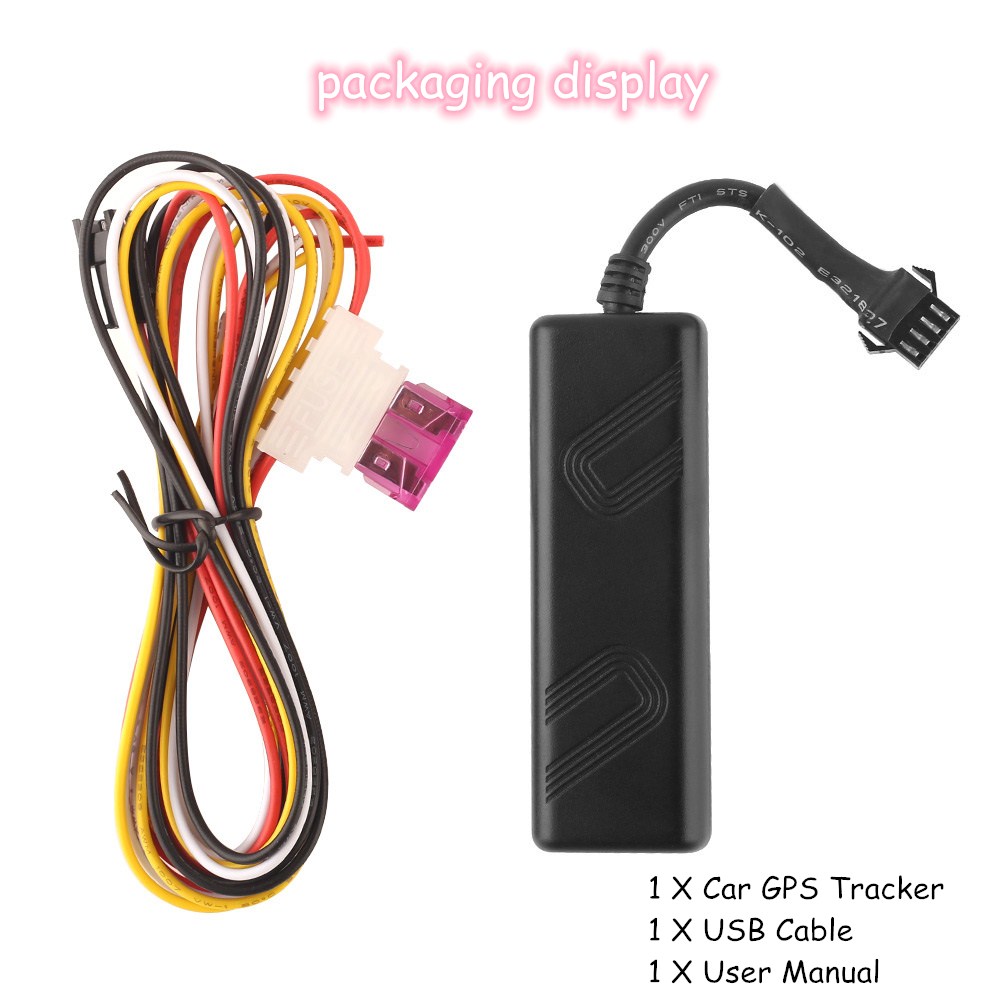

Packaging Details
1.Factory price
2.24 hours on call
3.One year warranty
4.Professtional QC test team
5.Fast delivery:samples can be shipped in 1day
FAQ | Instructions/Solutions
|
Fail to turn on | Please check if device has electricity and charge line to be rechargeable |

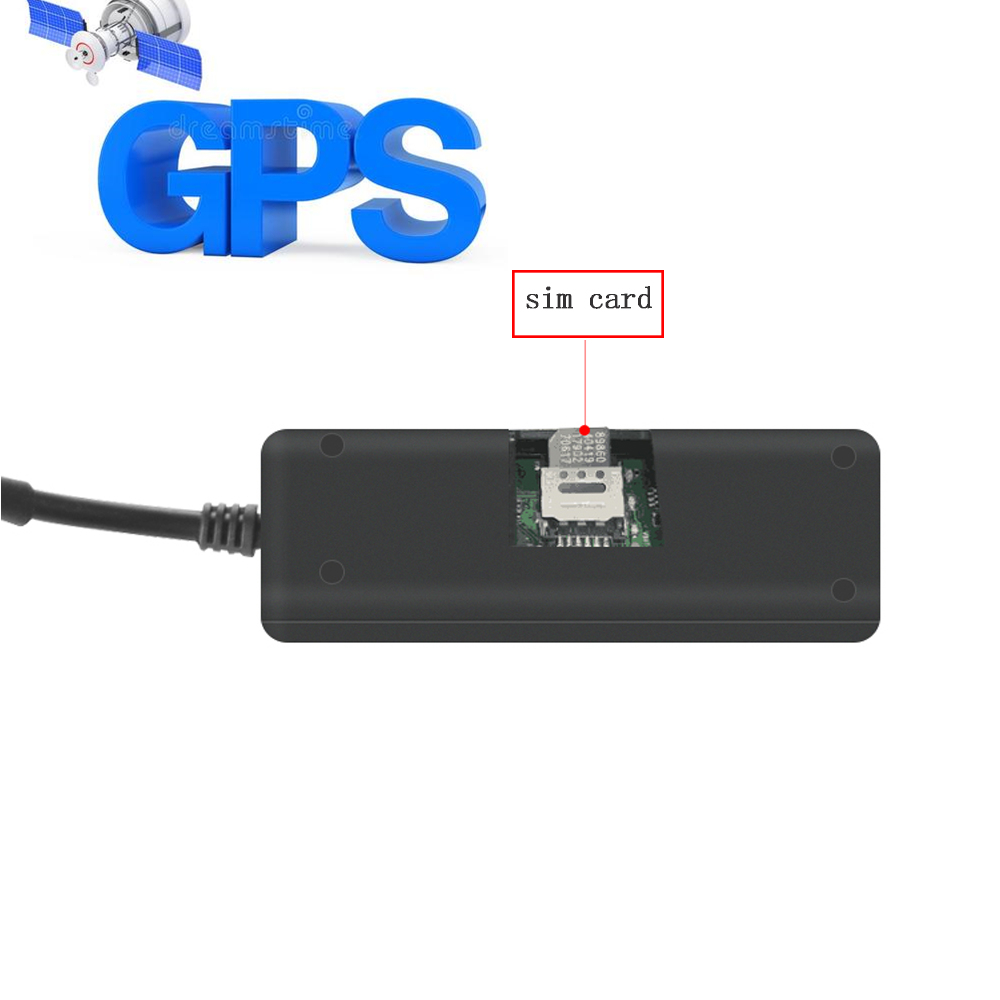

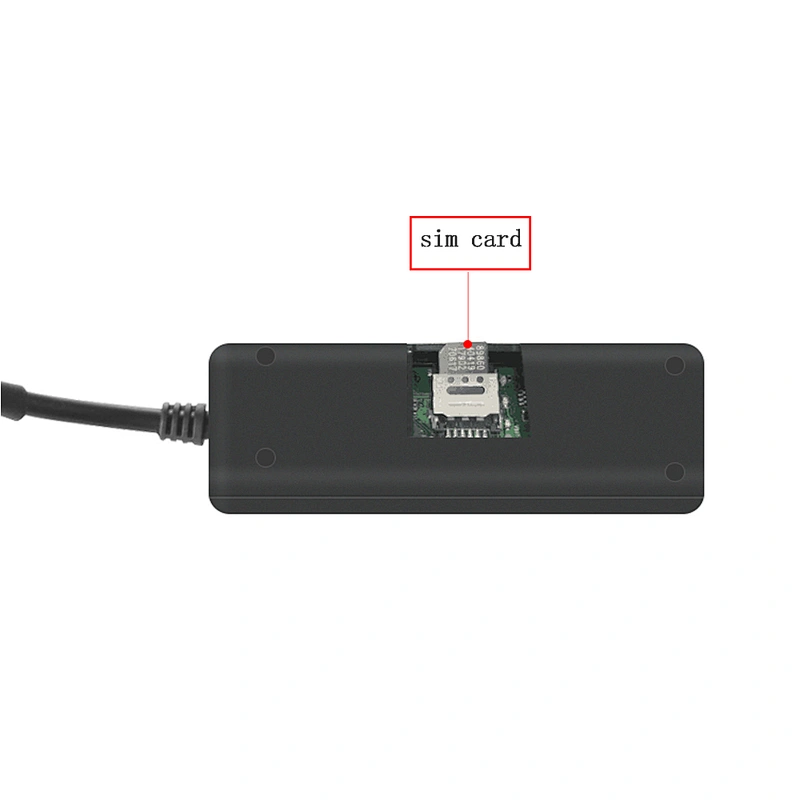

No GSM signal | l Please check if SIM card installed correctly. l Please check if SIM card is 2G GSM network. l Cancel Sim card PIN code l no calls can be diverted |
No GPS | make sure the device can receive the GPS signal normally.in outdoor,or take device to walk around |
No reply to SMS command | SMS command password wrong or the format is wrong. restore factory settings send “begin123456” |
No reply & No alarm message | Check if Authorized / admin phone number is incorrect andsim card is normal |
SMS position OK, cannot positoning the APP and web platform | Pls check if APN is correctly set And pls find out the correct APN content |
Platform position is difference from the actual position. | No uploading position time or no GPS signal,reply position is last time. If it shows like Pic 2, pls make sure the device can receive the GPS signal normally.in outdoor,and take device to walk around |
