- Type:GPS Tracker, ZX303
- Function:Bluetooth-Enabled, online tracking with mobile, online tracking with mobile
- Warranty:1 Years
- Place of Origin:Guangdong, China
- Brand Name:OEM
- Model Number:ZX303
- Use:Automotive
- Product name:gps mini tracker
- Network::GSM/GPRS 850/900/1800/1900MHz
- Color:Black
- Weight:0.3kg
- GPS accuracy:5m
- whatsapp:+8618075157039
- Keyword:tracking device
- web:365GPS

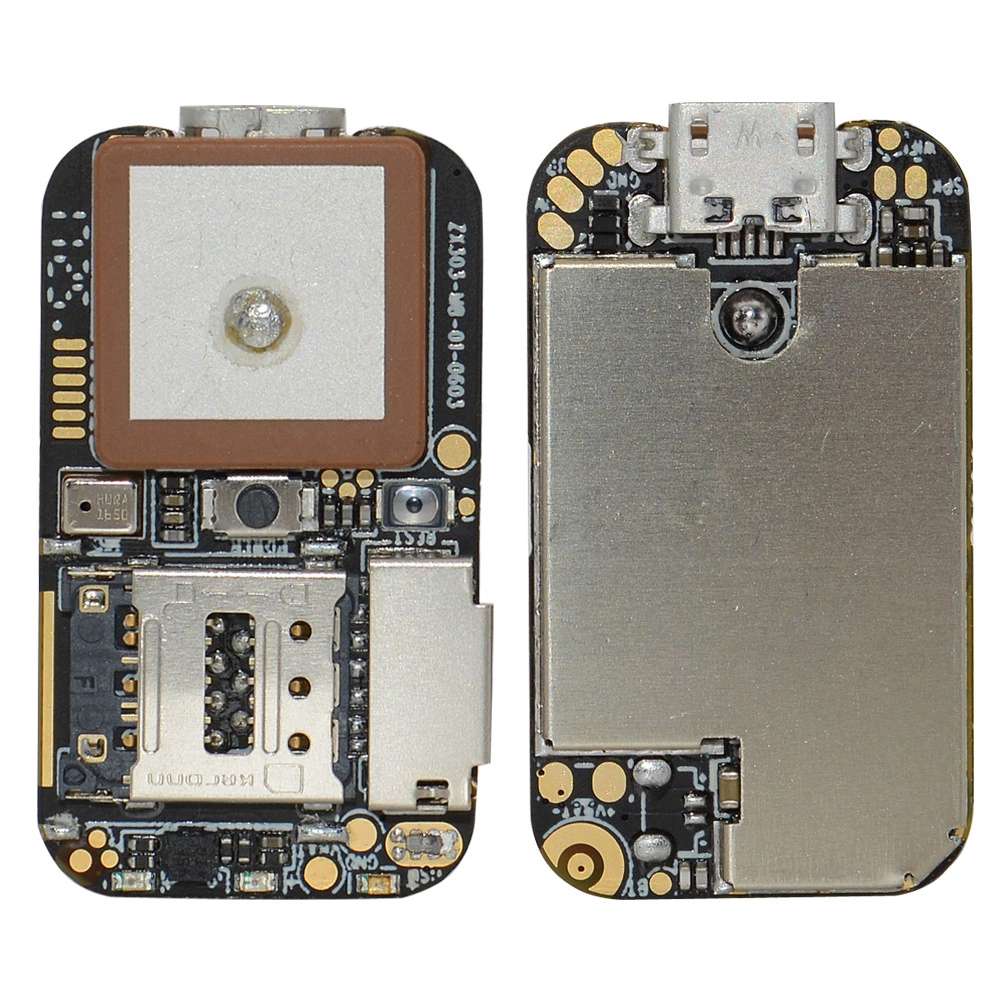

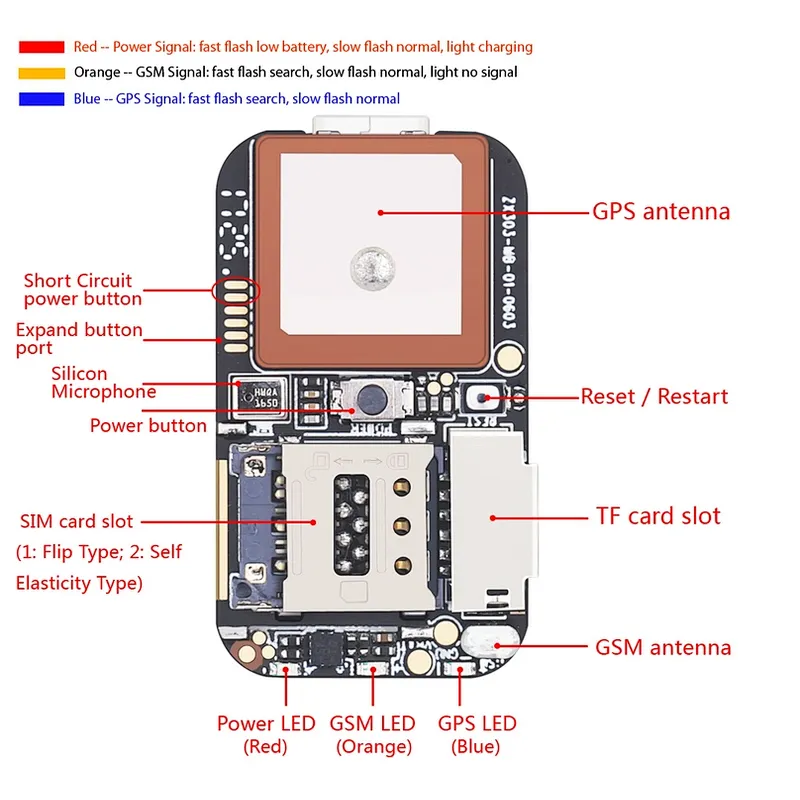

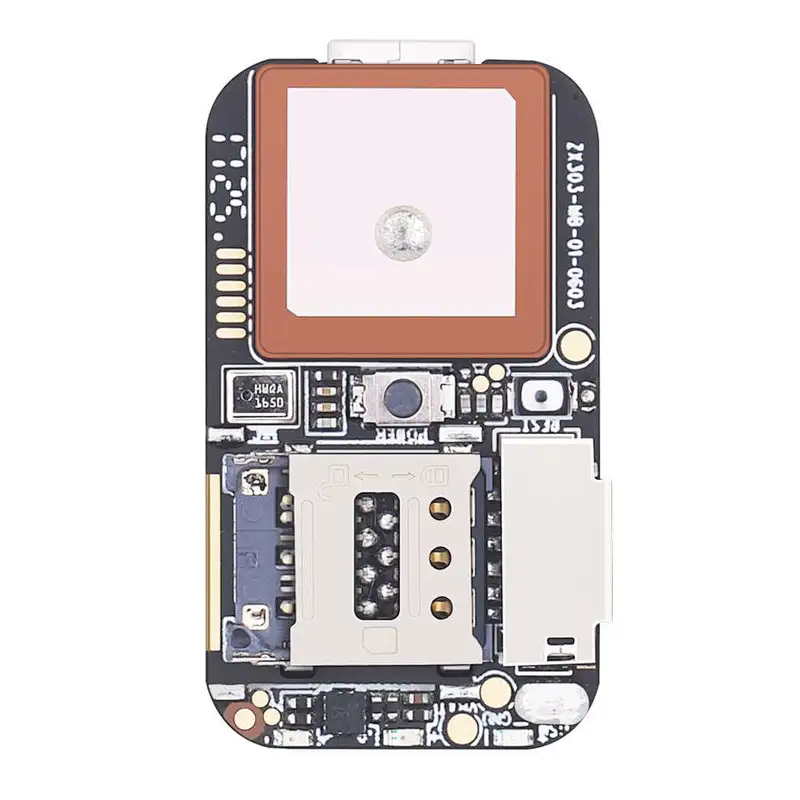

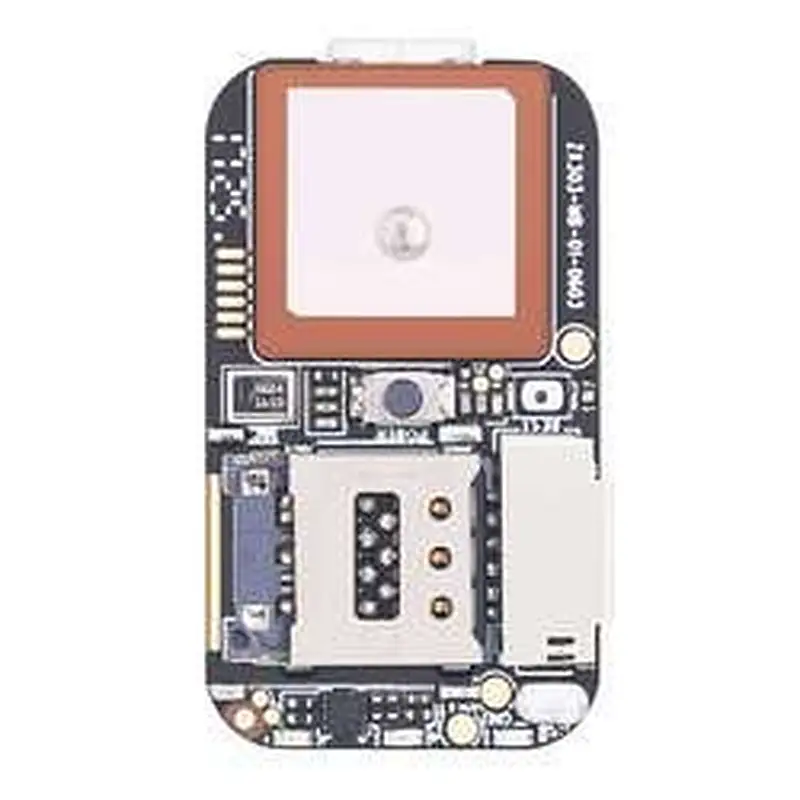

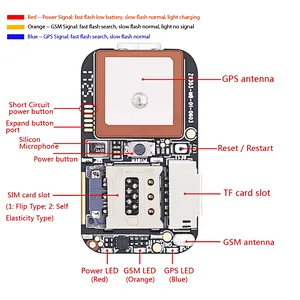

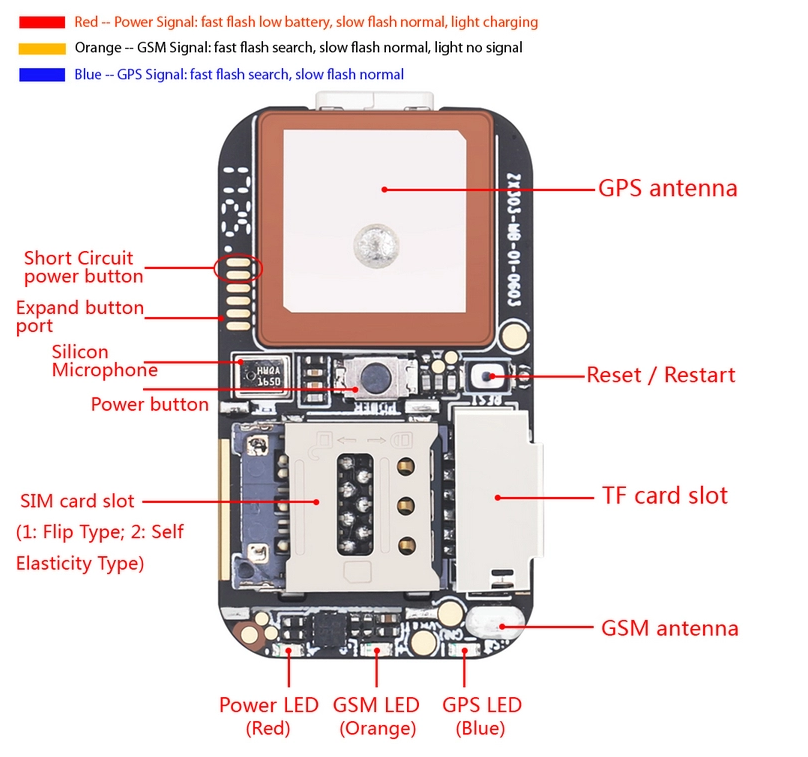

Mini GSM CPB Board ZX303 GSM+Wifi+GPS+LBS gps mini tracker with SOS Alarm Real-Time with Web App tracking
Top Quality , Factory Price , 1-3 days delivery , 2 years Warranty.
Need more information, pls contact Chirs. WhatsApp/Wechat: +8618075157039
Main specification:
| Function | Realtime GPS/AGPS/LBS/Wifi Positioning, SOS, Call Family Numbers, Geo Fence Alarm Reminder, historical track, Alarm Clock, Class Mode, Power Save |
| CPU | 2503D,Assisted Chip: 3333 + 5931 |
| ROM | 32MB |
| RFPA | 6625E |

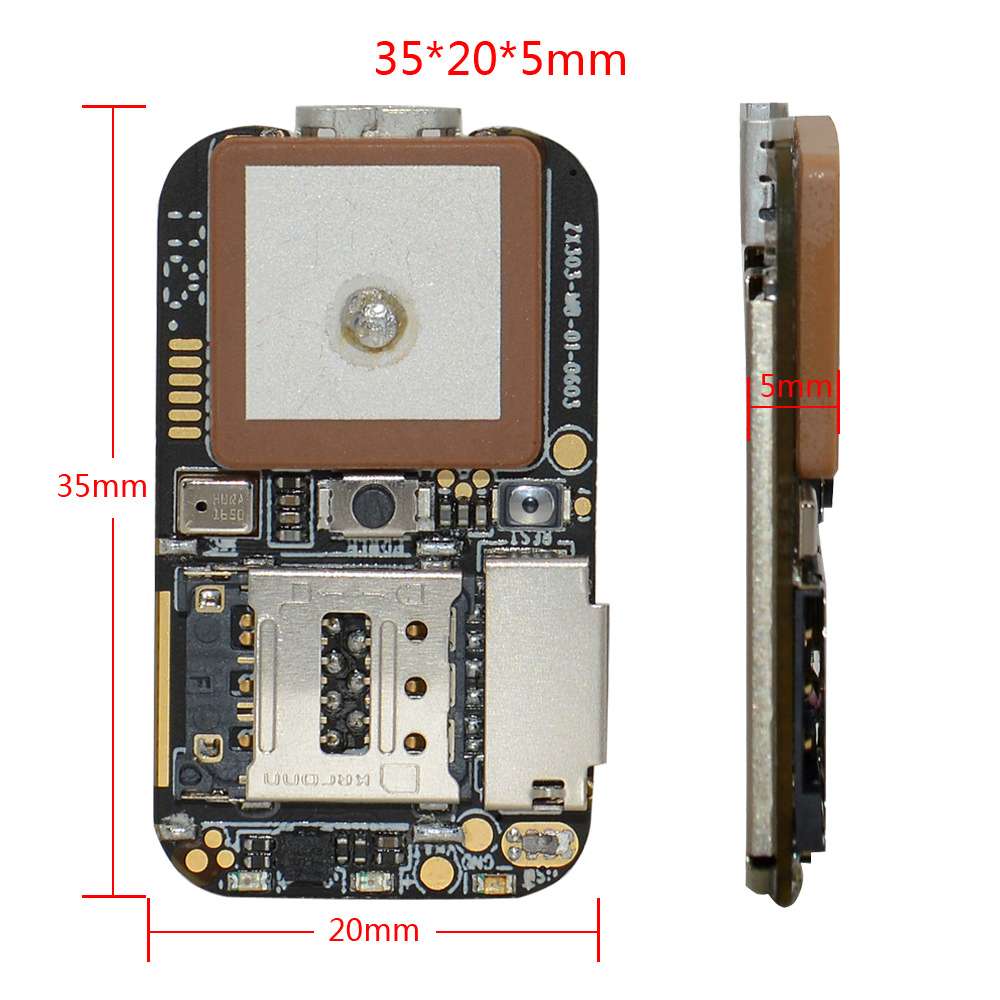

| Size | 20*35*4.5mm (thickness is total PCBA and GPS antenna) |
| Working Temperature | -20℃ - +70℃ |
| Network | GSM850/900/1800/1900MHz, working with GPRS 12 |
| GSM Antenna | PIFA Antenna |
| SIM slot | Support NANO sim card |
| TF Slot | Support TF card up to 32GB |
| GPS Antenna | 15X15 High performance ceramic antenna |
| GPS Positioning Accuracy | Within 10Metres |
| GPS Motion Accuracy | 0.1metre/second |
| GPS Positioning Time | Cold Boot-38s(Open field), Warm Boot2s(Open field),The specific time is affected by the environment |
| WIFI Positioning Accuracy | Within 50Metres |
| GSM Positioning Accuracy | 50-200Metres (Depending on the network) |
| Battery | Rechargeable 5V 3.7V Li-polymer battery(optional different capacity batteries upon different struction design) |

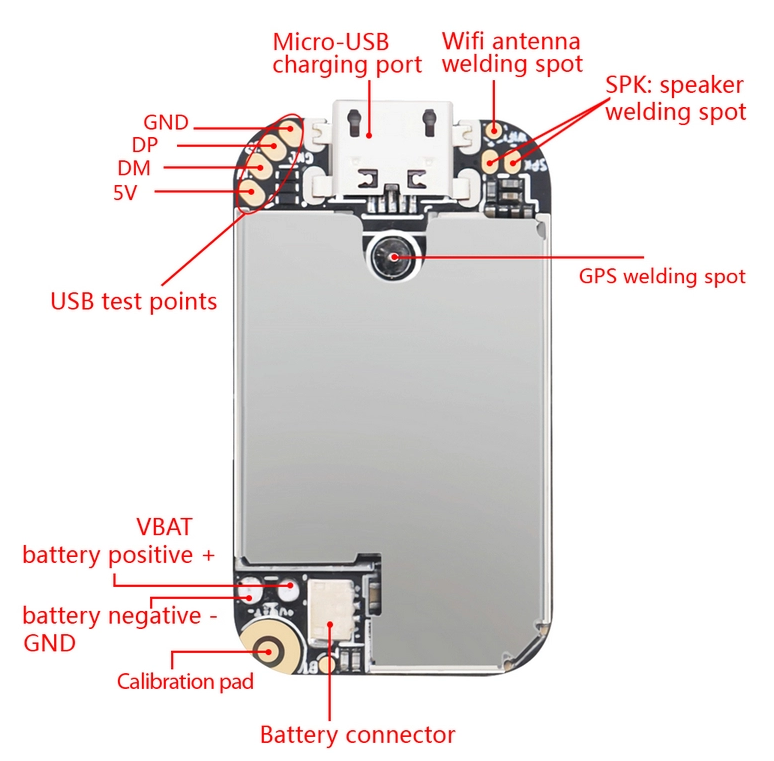

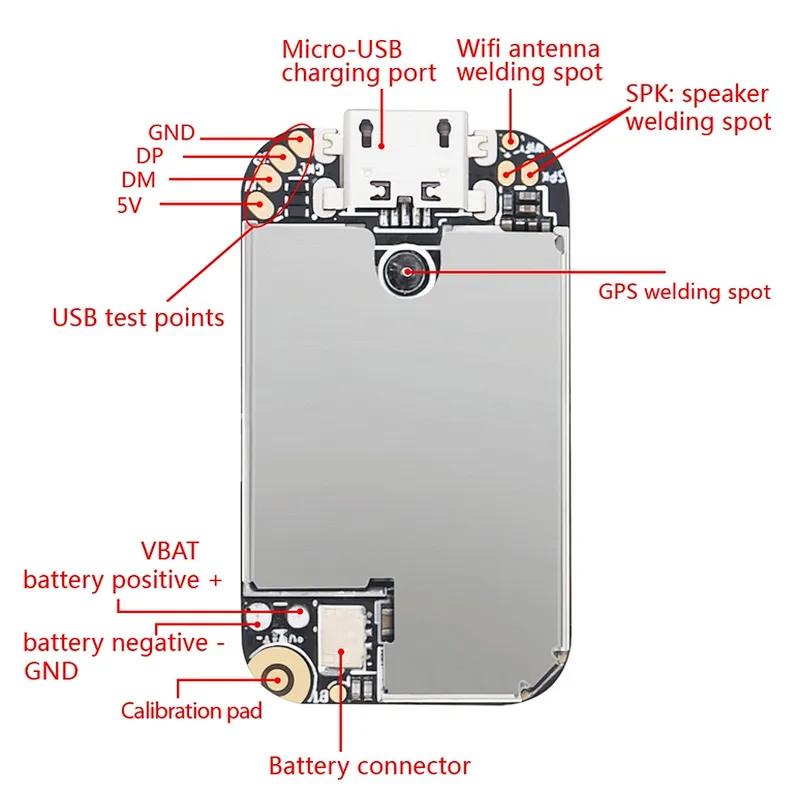

| Charging port | Android Micro-USB port |
| Charging Current: | DC 5V/0.5A-1A(depend on your battery capacity) |
| MIC | Built-in High-Definition Silicon microphone for SOS |
| Horn | 0916 AAC |
| Sensor | Build-in 3D G-sensor |
Attention:
1: This model can only work with 2G GSM network(GSM 850/900/1800/1900,support Nano sim card), make sure the GPRS network is available,please confirm your network with your local telecom operators.
2: Before your large scale quantity orders, we kindly suggest testing our samples in advance.
3: We offer free apps for our users for all our GPS tracker products.
4: For your own server, we are able to help you transfer the communication protocol
5: We are able to offer any necessary firmware & software technical assistance.
Note:
Our GPS tracker PCB technology is upgrading day by day, for one certain model, the new version may be have a bit appearance difference from the old versions, we will send you the latest version to our customers for better user experience.
Shipping Details
We will send the good out in 1-3 working days once received your payment with real time tracking No.
DHL/Fedex/UPS/TNT/ARA/EMS/By air/By sea and so on are optional, we can send goods by shipping ways you want.
Packaging Details
